Linear full-auto stretch blow molding machine is an economical full-automatic PET bottle blowing machine independently developed by LIDLI. It is economical, fast, and convenient. It can produce all kinds of bottles below 10L, including food packaging bottles, edible oil bottles, soda, and mineral water bottles, fruit juice bottles, wine bottles, cosmetics bottles, and so on.

1. Upgrade to Servo Motor Drive:

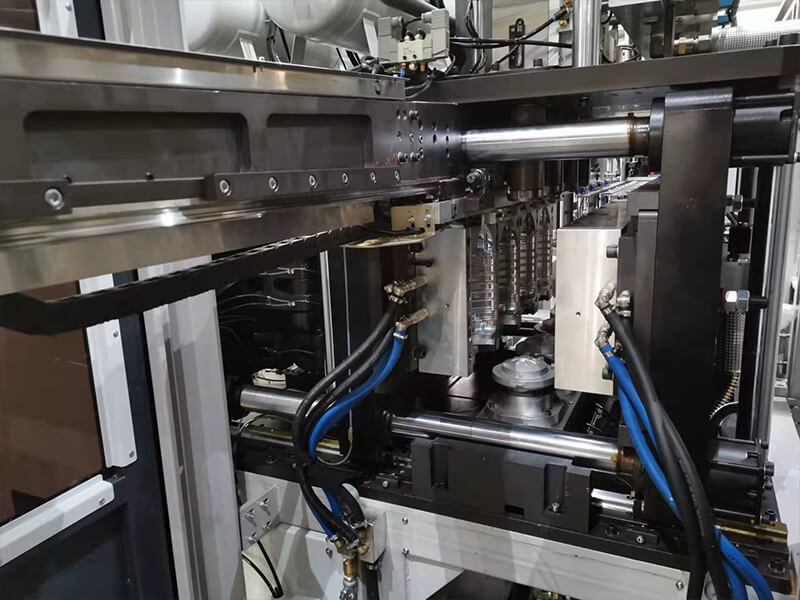

   Mold Clamping System: The servo motor drives the rocker linkage, driving frame, and the bottom mold opening and closing. Reaction time is reduced to 50% compared to the traditional pneumatic model. Simple structure, running smooth, no wear, longer use life.
2.  Mold fixed by drawer design, mold changeover can be easily done in a half-hour.

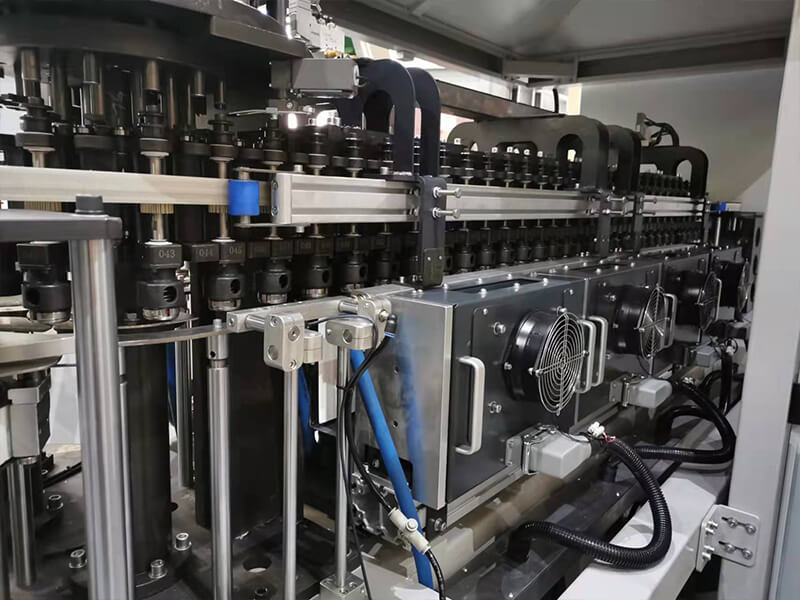

3. Efficiency Constant Temperature Oven:
   a, Use the most advanced high-frequency Infrared Lamp, increasing heating efficiency by 30%-50%.
   b, Each layer of the lamp is separately controlled, with an assistant ruler on a machine.
   c, Intelligent temperature control system.
   d, Temperature detector feedback to PLC automatically, PLC makes an accurate judgment and then controls circulation air in the oven. It leads to constant temperature in Oven, free from voltage fluctuations and ambient temperature. It works when large ambient temperature difference (-28~45ºC).

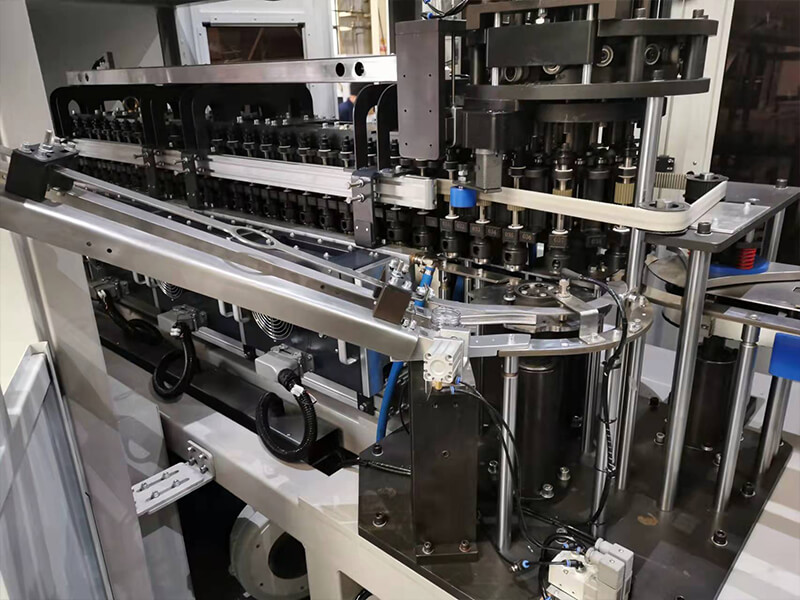

   e, Preform self-rotation System, ensure every side of every preform is heated evenly, which ensures the quality of the blown bottle. (thickness up to 4.5mm)
   f, Neck Cooling in Oven.
   g, Preform Necks are cooled by recycling water, which avoids neck deformation.
