Can Filling Machine

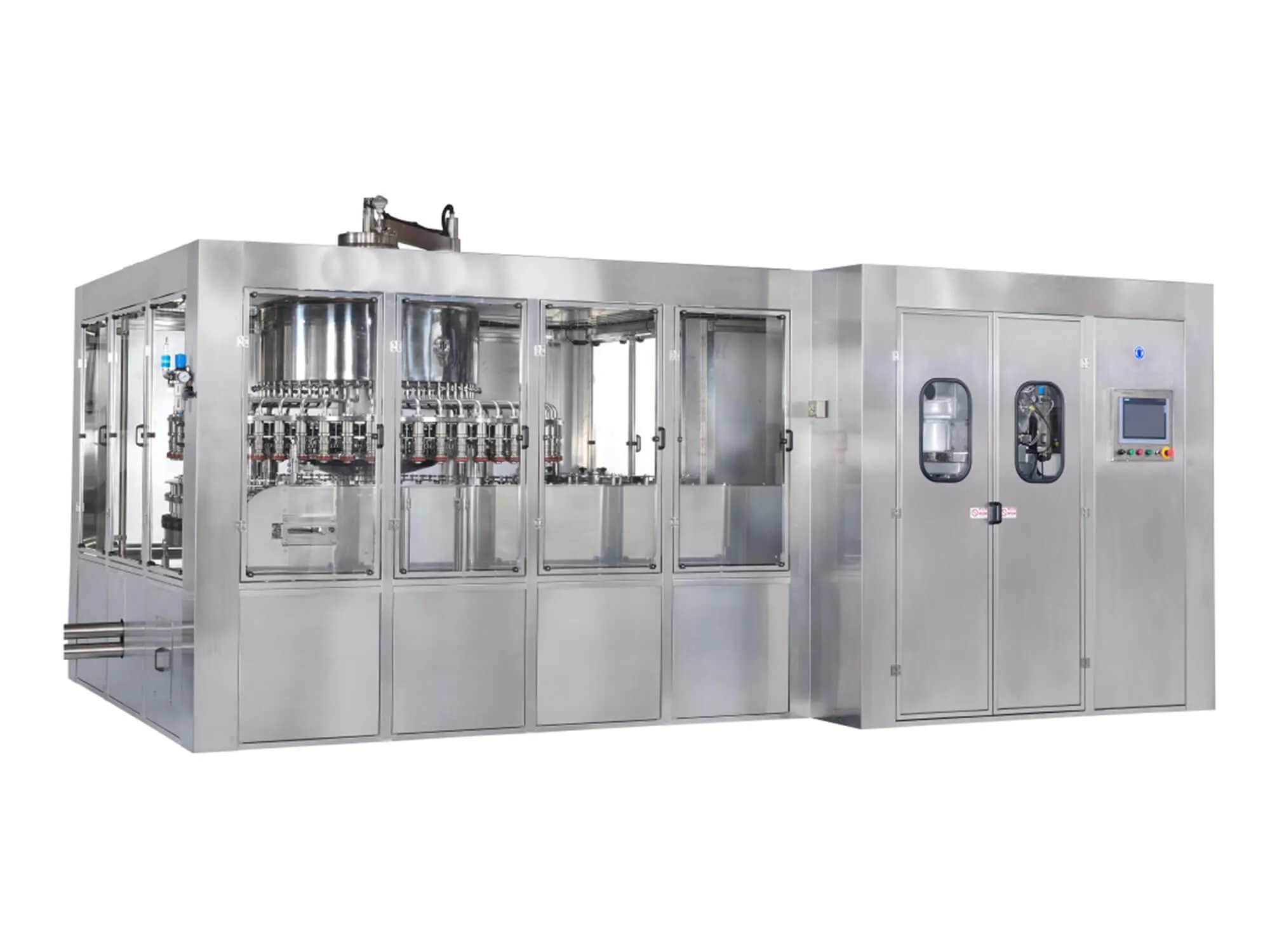

Can Juice Filling Sealing Machine
Filling and seaming capacity of 750 cans per minute in maximum. It is suitable for filling with low viscosity liquids in 2-piece and 3-piece beverage cans, such as juice, coffee, tea, coconut juice, walnut milk and sesame seed paste, etc. The Filler is driven by the Seamer for synchronized operation. The new designed filling machine integrates the multiple CIP functions, lube-free filling lifter and motorized working height adjustment, etc.
Main Features
- The Filler is available to carry out the CIP (Clean-in-Place).
- The liquid level in filling tank is controlled by the float level switch.
- The filling temperature can be read, set and monitored by the HMI.
- Automatic stop feeding as low liquid level in filling tank.
- Automatic stop feeding as the liquid is below the filling temperature.
- All parts in contact with liquid are made of SUS304 stainless steel.
- Lube-free and maintenance saving Filling Lifters.
- Motorized height adjustment for the seaming head.
- Frequency Inverter for variable speed control.
- Automatic Centralized Lubrication System.
- All cams of Seamer are made by hardening and track fine grinding.
- Titanium Nitride (TiN) coating HORYANG® Seaming Rolls and Chucks.
- Seaming Rolls are simply adjusted by worm screws.
- Automatic machine safety and protection system.
- Controlled by HMI (Touch Screen) with complete production messages.
- SUS304 stainless guarding enclosure & tempered glass windows.
- Pneumatic Lid Gapper reducing the heavy weight of lid stack.
- Motorized height adjustment for the Filler. (Optional)
- Undercover CO2 and Steam Injection System. (Optional)
Product Parameter
| Model | F56A / A8H | F56B / A8H |
| Filling Tank Volumn | 560 L | 360 L |
| Max. Capacity | 700 – 800 cpm | 700 – 800 cpm |
| Can Height Range | 70 – 180 mm | 70 – 180 mm |
| Filling Tank Diameter | 1474 mm | 2160 mm |
| Net Weight (Approx.) | 7650 / 2450 kgs | 7510 / 2450 kgs |
| Can Discharge Height | 1200 mm | 1200 mm |
| Can Feed Height | 1200 mm | 1200 mm |
| Horsepower | 15 HP (11.2KW) | 15 HP (11.2KW) |
| Number of Heads | 56H / 8H | 56H / 8H |
| Can Diameter Range | 202 – 301D (52-74mm) | 202 – 301D (52-74mm) |
| Dimensions (LxWxH) | 6965 x 3956 x 3400 mm | 6965 x 3956 x 3400 mm |
