Juice Filling Machine

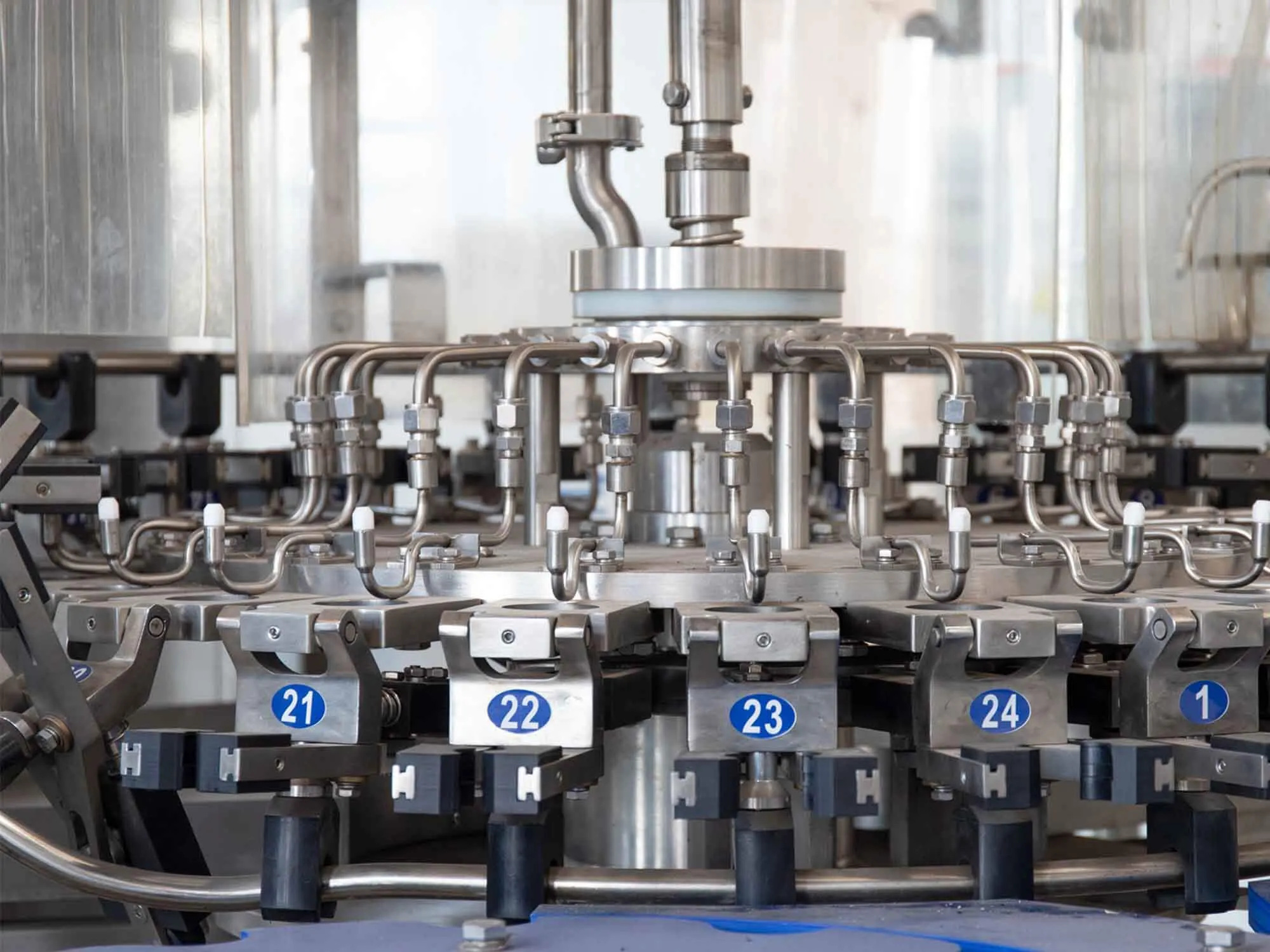

Automatic Glass Bottle Juice Filling Machine
This series of equipment is used for hot filling production of tea drinks, fruit juice drinks and other products. This series is a combination of sterilization, filling and sealing. The design is scientific and reasonable, so operate is simple. It is the preferred equipment for hot-filling drinks.
Main Features
(1), The equipment is featured by compact construction, perfect controlled system, convenient operation, and high automatic level.
(2), It only needs to change the star-style wheel of spiral cover an arch board to change different bottles,
(3), The spare parts connected with the material are made of stainless steel, non-process dead-angle, easily cleaned.

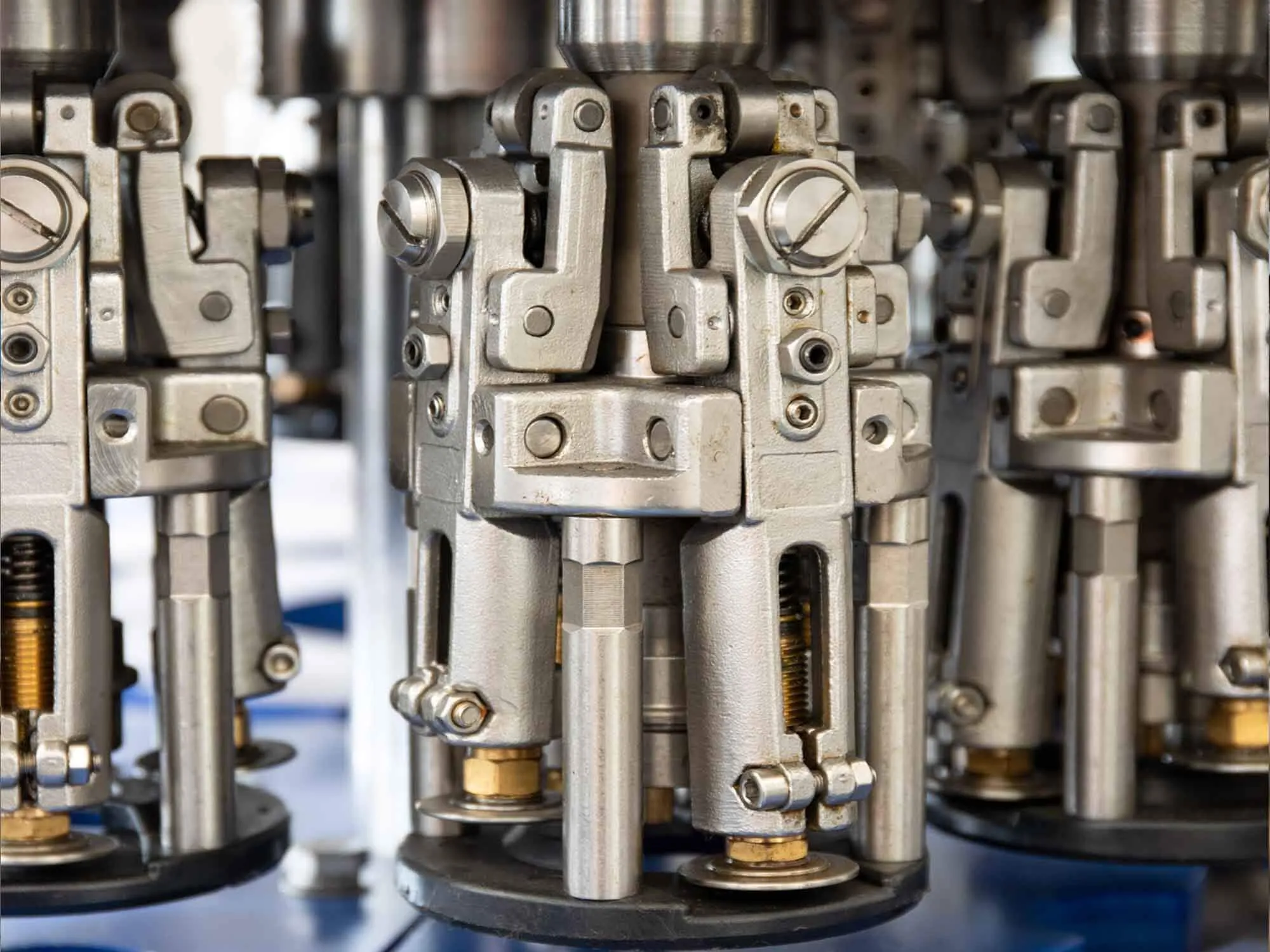

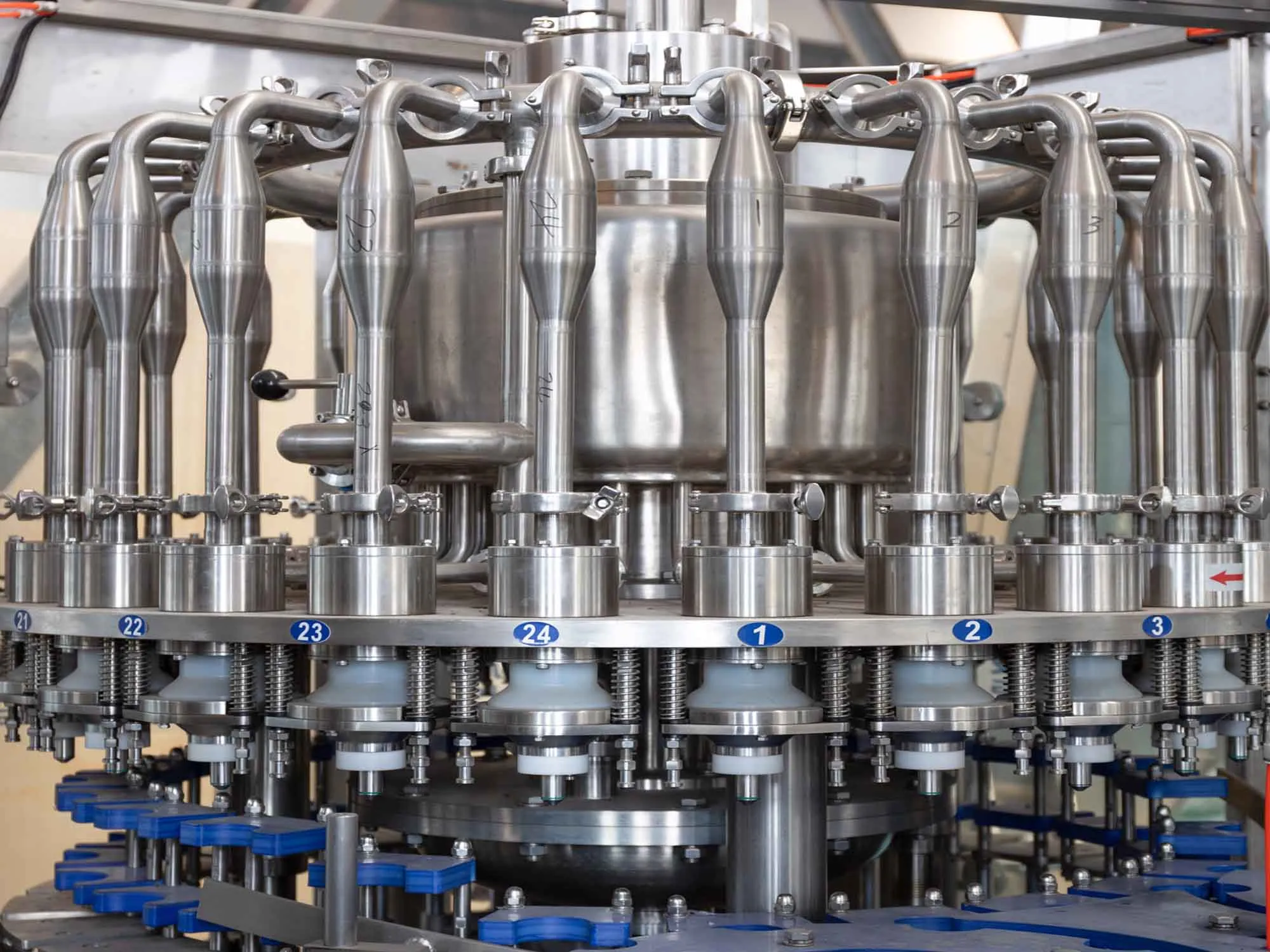

(4), It adopts a high-speed filling valve, accurate liquid level, and non-liquid damage, to ensure filling industrial art.

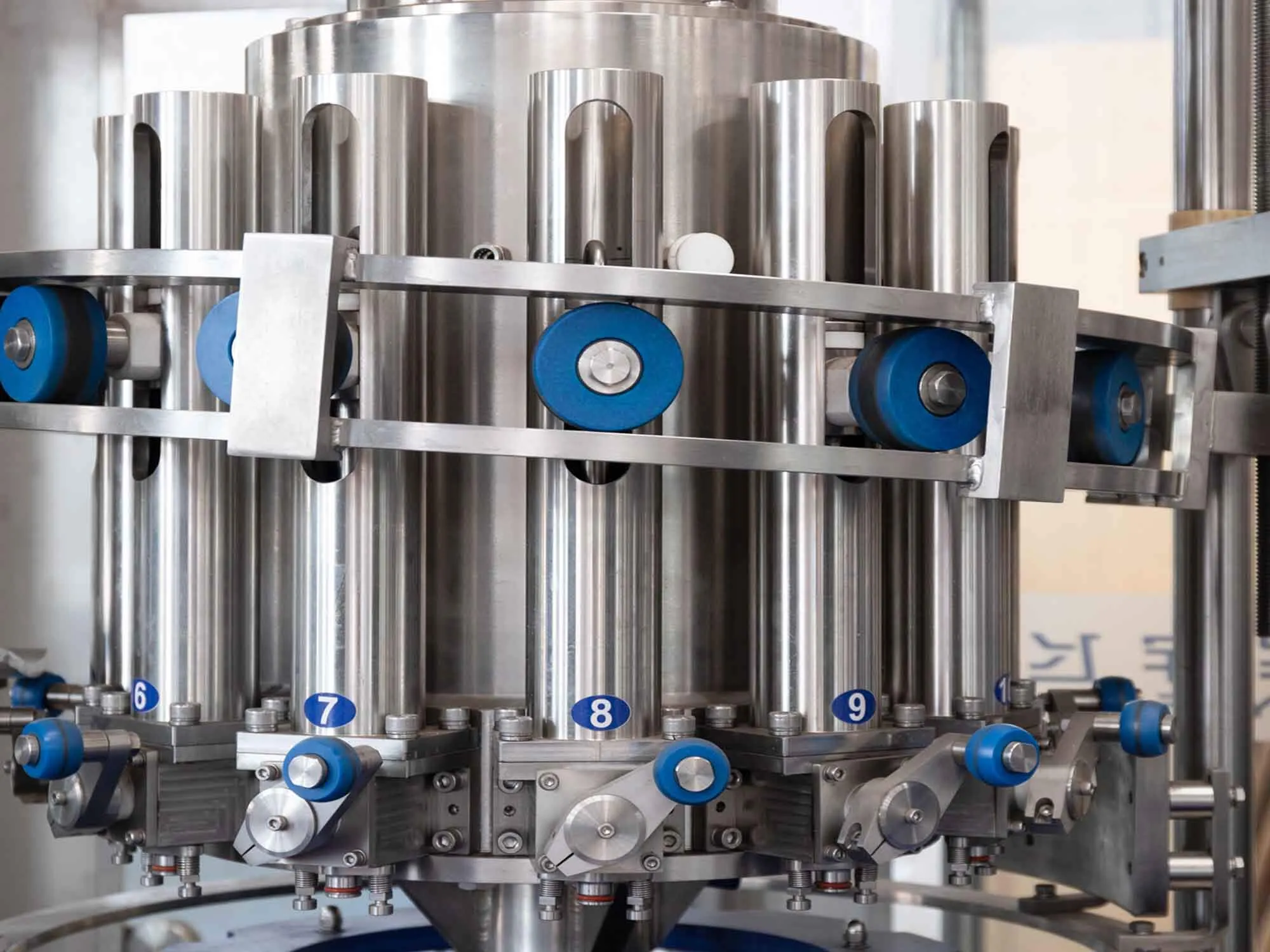

(5), the Sealing cap is an adopted magnetic force-torque device, to ensure the sealing quality, and not to damage the cap.
(6), It adopts high efficient arranging cap system, which is characteristic with complete self-control and safety device.
(7), It’s equipped with a perfect over-load protecting device, which can protect effectively the equipment and operator.
(8), The controlling system is featured by producing speed control, missing cap detects, auto stop when bottles are stuck, production accounted.
(9), Main electric and pneumatic components are imported world-famous brands.
(10), The machine is adopted advanced touch screen control; human-machine dialogue operation is workable.
Product Parameter
Model | Machine name | Production capacity | Power (kW) | Low-pressure air consumption 0.8MPa (Nm³/min) | Application bottle type and range |
---|---|---|---|---|---|
DXGF14-12-5 | CSD filling machine | 2000BPH (500ml) | 2.25 | 0.8 | 350ml-1500ml (PET bottle) |
DXGF18-18-6 | CSD filling machine | 4500BPH (500ml) | 2.75 | 0.8 | |
DXGF24-24-6 | CSD filling machine | 8000BPH (500ml) | 3.35 | 0.8 | |
DXGF32-32-8 | CSD filling machine | 12000BPH (500ml) | 5.27 | 0.9 | |
DXGF40-40-10 | CSD filling machine | 14000BPH (500ml) | 5.87 | 1.2 | |
DXGF50-50-12 | CSD filling machine | 17000BPH (500ml) | 9.25 | 1.2 | |
DXGF60-60-15 | CSD filling machine | 20000BPH (500ml) | 12.2 | 1.2 | |
DXGF72-72-18 | CSD filling machine | 26000BPH (500ml) | 15 | 1.2 | |
BDXGF8-8-3 | CSD filling machine | 1000BPH (500ml) | 3 | 0.5 | 350ml-1500ml (Glass bottle) |
BDXGF18-18-6 | CSD filling machine | 4500BPH (500ml) | 5.27 | 0.6 | |
BDXGF24-24-8 | CSD filling machine | 8000BPH (500ml) | 5.27 | 0.8 | |
BDXGF32-32-10 | CSD filling machine | 12000BPH (500ml) | 5.87 | 1.2 | |
BDXGF40-40-12 | CSD filling machine | 14000BPH (500ml) | 5.87 | 1.2 | |
BDXGF50-50-15 | CSD filling machine | 17000BPH (500ml) | 6.87 | 1.3 | |
BDXGF60-60-15 | CSD filling machine | 20000BPH (500ml) | 7.67 | 1.3 | |
BDXGF72-72-18 | CSD filling machine | 26000BPH (500ml) | 9.57 | 1.3 |
